Stainless Steel Blind Flange

Short Description:

Size: ½” (15 NB) to 48″ (1200NB)
Type: Blind
Pressure ratings: 150#, 300#, 600#, 900#, 1500#, 2500#
Materials: Stainless Steel:
304/304L, 316/316L, 304H, 316H, 309, 310S, 317L, 321/321H, 347/347H, 904L, DUPLEX 2205 / SUPER DUPLEX 2507
Standards: SANSI B16.15, ANSI B16.47, MSS SP-44, API6A, API 17D, Manufacturer Standard etc.


Product Description

Specification

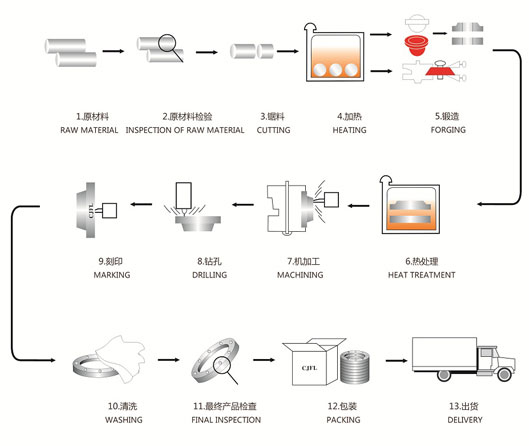

Manufacturing Technique

Product Display & Application

Product Tags

Stainless Steel Blind flange also named stainless steel blank flange or stainless steel flange cover, it is a flange without hole. And used to blank off the ends of piping, Valves and pressure vessel openings.

From the standpoint of internal pressure and bolt loading, stainless steel blind flanges, particularly in the larger sizes, are the most highly stressed flange types. However, most of these stresses are bending types near the center, and since there is no standard inside diameter, these flanges are suitable for higher pressure temperature applications.

Details of Stainless Steel Blind flange


1.Blind flange 2.Stud Bolt 3.Gasket 4.Other flange

Stainless steel blind pipe flange is specified by ANSI B16.47.

Hunan Great offers stainless steel blind pipe flange in A105, A105N, SS316, SS304, A20. Email info@hunantube.com for your stainless steel flange buying needs.


  • Previous:
  • Next:

  • Product: Stainless Steel Blind Flange
    Dimension Range: 1/2” to 48” (1200NB)
    Rates/SCH: 150#—2500#,API2000PSI-20000PSI
    Materials: ASTM A182 F304, F304L, F304/304L, F316, F316L, F316/FP316L, F317L, F321, F321H, F347, F347H, F51(Duplex Steel), N08904etc.
    Standards: ANSI B16.15, ANSI B16.47, MSS SP-44, API6A, API 17D, Manufacturer Standard etc.
    Our Strength
    • Fast Delivery
    • Various Materials
    • Full set of swivel ring flange, including gaskets and bolts
    • Customized fabrication available
    • Package supplying of piping materials
    • Overlay process
    • Third party inspection available

    Notes:
    ①The material above is for your reference only. The actual inquiry will consider order quantity and delivery time.
    ②If didn’t find your material here, you are kindly requested to make a specific enquiry to: info@hunantube.com.

    1

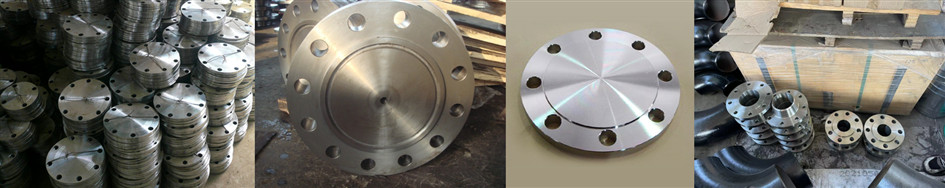

    Blind Flange Display

    ● Offshore
    ● Chemical Engineering
    ● Onshore Oil&Gas
    ● Paper Plants
    ● Fertilizer
    ● Environment Engineering
    ● Power Project
    ● Mining
    ● Shipyard
    ● Mechanical Manufacture
    ● Food & Pharmacy
