Stainless Steel Cap

Short Description:

Product: Butt Weld Cap/Socket Weld Cap (and Threaded Cap)
Size: NPS from 1/2” to 48”, DN from 12 to 1200,WT: 2-80mm, SCH 40/80/XXS
Material:
Stainless Steel — ASTM 403
304/304L, 316/316L,316Ti,321,317L,310S;
Packing: Packed in Wood Cabins/ Wood Tray


Product Description

Specification

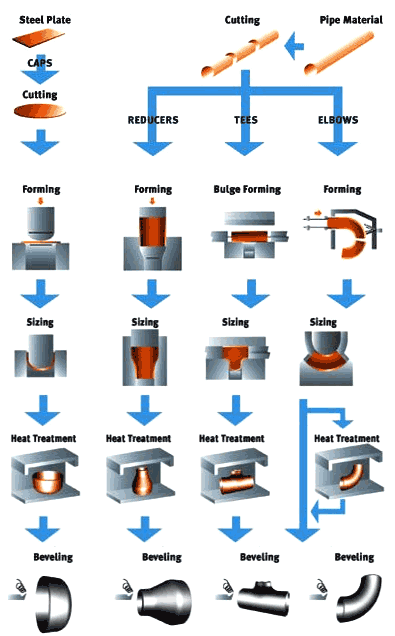

Manufacturing Technique

Product Display & Application

Product Tags

Pipe caps are the pipe fittings designed to be the ends of a piping. it is used to block off the end of a piping system by placing the cap over the open pipe. It is commonly made from the steel plate, in standard ANSI/ASME B16.9,the cap is butt welding ends, it is welded with the open pipe.

Types of pipe caps:
Pipe caps come in many different types and the type vary according to the application. However pipe caps also vary depending on their construction features and it is very important for the buyer to know the right type of pipe cap. Based on construction, pipe caps are of the following types:

Threaded Caps:
These caps are female threaded. The thread can be either straight or tapered, also referred as NPT. Generally, caps have a female thread and plugs have a male thread.

Tapered Caps:
These caps have tapered sides, which offers a close fit. Some of these fittings can be used either as a cap or a plug. Tapered caps and plugs are multi-functional and go well with male and female NPT threads, straight tubes and bars; and male straight threads. These fittings have a tapered body to provide a secure and firm friction fit while facilitating easy removal. The tapered caps are designed to provide protection for all internal and external, threaded and non-threaded fittings against damage, dirt or moisture that can occur.

Anti-roll Caps:
These caps are round in shape with a slightly square end. This prevents pipes and tubes from rolling.

Our products like end caps are packaged to make sure that there’s no damage throughout transit. Just in the case of exports, customary export products like end caps are packaged to make sure that there’s no damage throughout transit. Just in case of exports, customary export packaging is completed in wooden boxes or cases. All end caps are marked with Trademark (Company’s LOGO), Grade, Size, and Lot No. On requests, we can do custom marking on our products.

We also use caps to cut off the transition and the connection treat can be butt weld, socket weld, and thread conection according to user requirements.Port packaging is completed in wooden boxes or cases. All end caps are marked with Trademark (Company’s LOGO), Grade, Size, and Lot No. On requests, we can do custom marking on our products.

Based on shapes, like the hemispherical, oval, round etc . Because pipe cap is made of pressing steel plate to the shape of a cap, the cap is seamless pipe fitting commonly.


  • Previous:
  • Next:

  • What Material We Do

    Material Grade
    Stainless Steel AISI 304, 304L, 316, 316L, 316Ti, 317L, 321, 321H, 347, 347H, 904L, 254 SMO (W1.4301, 1.4306, 1.4948, 1.4401, 1.4404, 1.4571, 1.4438, 1.4541, 1.4878, 1.4550, 1.4845, 1.4539, 1.4547 etc.).

    Manufacture Standards:
    ASME/ANSI B16.9, MSS-SP-75, DIN2617, JIS B2311/2312/2313, GB12459, GB/T13401, SH3408, SH3409, ISO 3419, ISO 5251 etc.
    Dimension:
    1/2″ to 104″(DN15 ~DN2600)
    Wall Thickness: SCH10S to SCHXXS

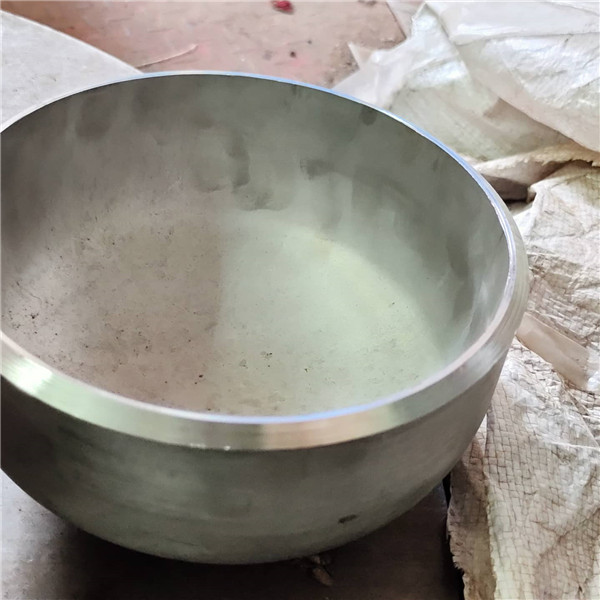

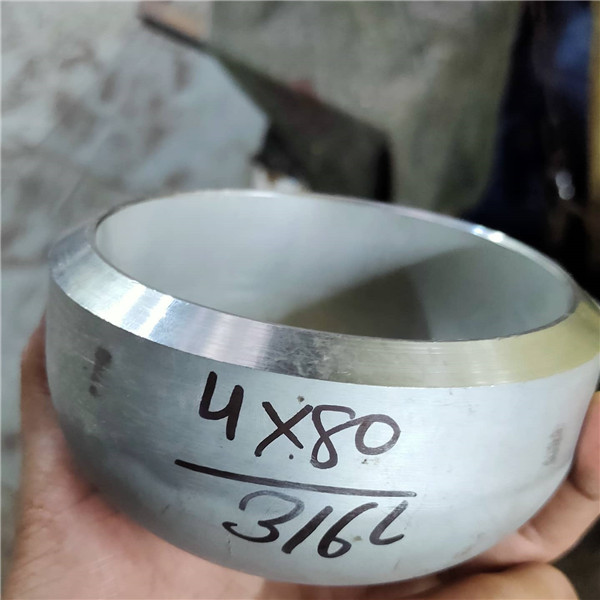

    Stainless Steel Cap display

    They are used in the plumbing apparatus of domestic, commercial and industrial water supply lines, machinery and processing equipment etc.
