Short Description:

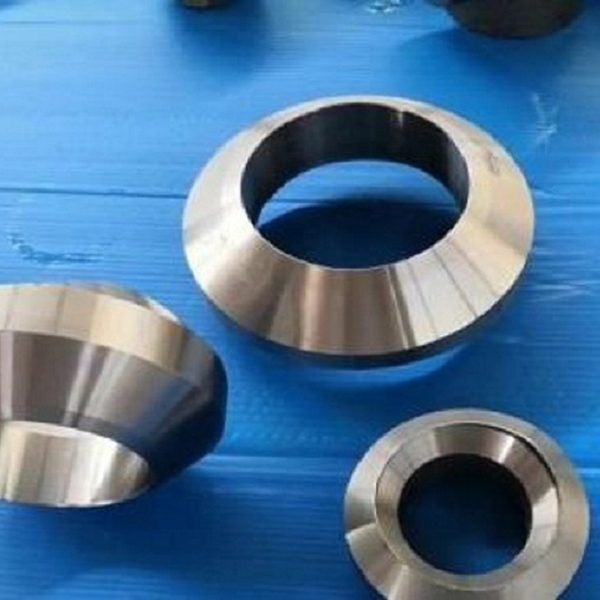

Product: OLets Pipe Fitting,weld olet, socket-olet, threaded-olet, nip-olet, latr-olet, eblow-olet etc.
Size: 1/8”-48”

stainless steel :ASTM A182 F304, F316, and other SS grades

Pressure class: 3000/6000/9000LBS
Types: Weldolet, Sockolet, Thredolet, Elbolet and Nipolet,
Special Olets such as Latrolet, Flexolet, and Coupolet are also used sometimes.

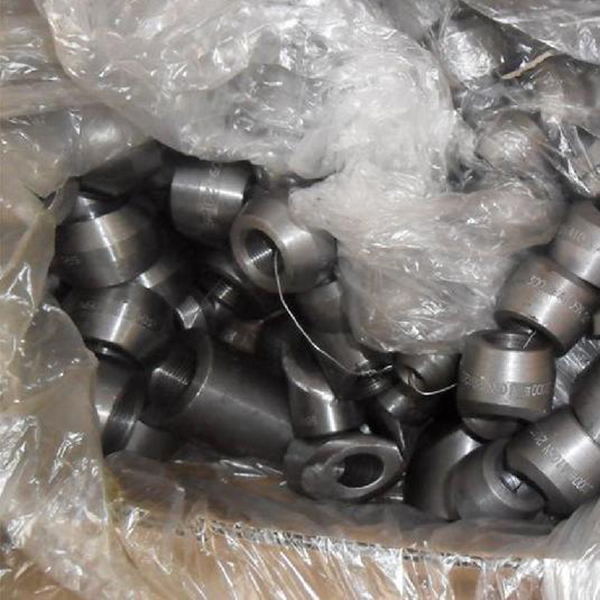

Packaging: Seaworthy Package plywood case or pallet

Product Description

Specification

Manufacturing Technique

Product Display & Application

Product Tags

The OLets Pipe Fitting is mainly used for reinforcing pipe fittings of branch pipe connection, instead of using different diameter tee, reinforcing plate, reinforcing pipe section and other branch pipe connection types. It has the outstanding advantages of safety, reliability, cost reduction, simple construction, improvement of medium runner, series standardization, convenient design and selection, especially in high pressure, high temperature, large diameter, thick. The wall pipe is used more and more widely, which replaces the traditional branch pipe connection method.

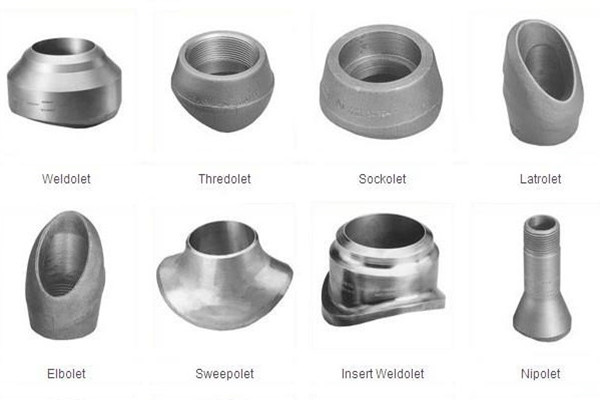

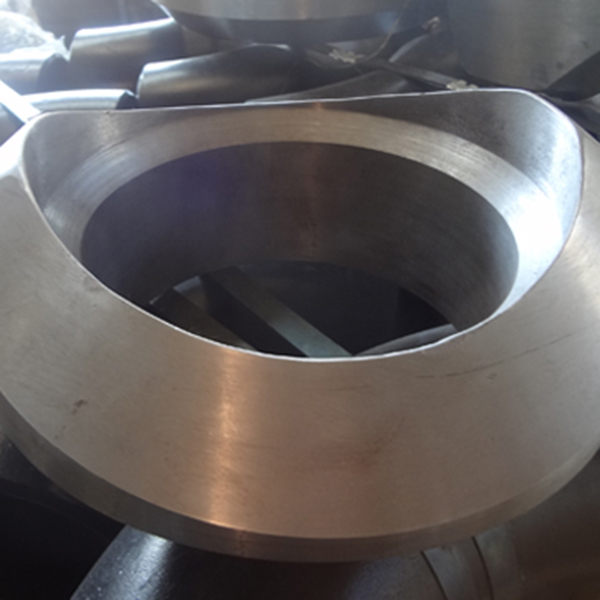

Weldolet
This fitting's purpose is to make self-reinforced branch outlets on a larger (one size or more) run of pipe. The base of the common weld-o-let has a saddle shape to fit the run pipe. The outlet end of the weldolet has a beveled-end allowing for butt welding a pipe or fitting.

Sockolet
The Sockolet is also made much the same as the weldolet except that the outlet has a socket to match the socket welded piping fittings and pipe. The socket outlet sizes are normally limited to the smaller (2" and under) pipe sizes.

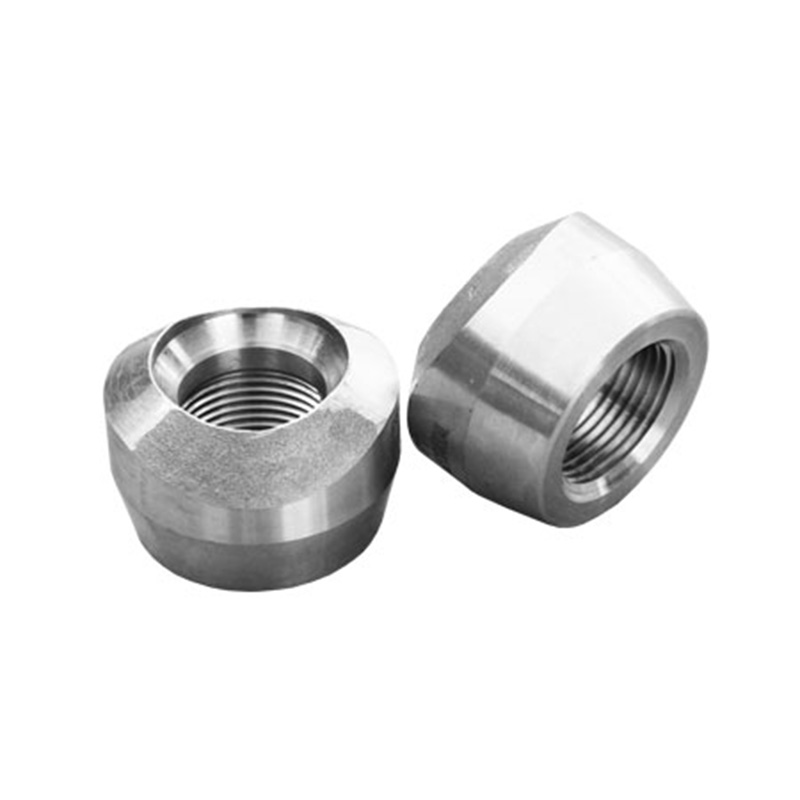

Threadolet
The Thredolet is made much the same as the Weld-O-Let except that the outlet is threaded to match the normal tapered pipe threads. The threaded outlet sizes are normally limited to the smaller (2" and under) pipe sizes.

Latrolet
A Latrolet is a weld on branch fitting that is attached to the run pipe at a 45° angle. The angle attachment is sometimes required on high pressure relief systems.

Elbolet
The Elbolet is made to be fitted on the back side of a long radius 90° elbow.

  • Previous:
  • Next:

    • Materials

    Followings are the list of most commonly used materials for Olets fittings-

    A182 Gr. F304, A182 Gr. F316, A182 Gr. F321, A182 Gr. F347 – Stainless Steel (SS)

    Dimensions

    WELDOLET DIMENSIONS
    The dimensions of Weldolets are explained in this article.
    SOCKOLET DIMENSIONS
    Sockolet class 3000 “Size on Size”



    Outlet Size (NPT)

    A

    B

    C

    D

    E

    Approx. Weight (lb)
    1/2

    1

    1 3/8

    15/16

    0.622

    17/32

    0.15
    3/4

    1 1/16

    1 5/8

    1 3/16

    0.824

    15/32

    0.25
    1

    1 5/16

    2

    1 7/16

    1.049

    23/32

    0.45
    1 1/4

    1 5/16

    2 3/8

    1 3/4

    1.380

    9/16 0.65
    1 1/2

    1 3/8

    2 7/8

    2

    1.610

    21/32

    0.85
    2

    1 1/2

    3 1/2

    2 9/16

    2.067

    15/16

    1.40
    2 1/2

    1 9/16

    4 1/16

    3

    2.469

    3/4

    2.25
    3

    1 3/4

    4 13/16

    3 11/16

    3.068

    15/16

    3.75
    3 1/2

    1 11/16

    5 3/8

    4 7/16

    3.548

    11/16

    4.30
    4

    1 7/8

    6 1/16

    4 3/4

    4.026

    1 1/16

    6.60
    5

    2 7/16

    7 1/4

    5 1/4

    5.047

    1

    9.00
    6

    2 11/16

    8 11/16

    6 1/16

    6.065

    1 3/16

    15.50

    Notes:
    ● Class 3000 to be used with schedule 80 pipes
    ● Dimensions and tolerances in accordance with ASME B16.11 and MSS SP-97
    ● Flat sockolets are used on welding caps, elliptical heads and flat surfaces
    ● Each outlet size is available to fit any run curvature.
    ● Sockolet class 6000 “Size on Size”

    photo64 photo63

    Outlet Size (NPS)

    A

    B

    C

    D

    E

    Approx. Weight (lb)
    1/2

    1 1/4

    1 23/32

    3/4

    0.466

    7/8

    0.50
    3/4

    1 7/16

    1 61/64

    1

    0.614

    7/8

    0.80
    1

    1 9/16

    2 7/16

    1 5/16

    0.815

    15/16

    1.30
    1 1/4

    1 5/8

    2 23/32

    1 1/2

    1.160

    13/16

    1.60
    1 1/2

    1 11/16

    3 1/4

    1 15/16

    1.338

    7/8

    2.00
    2

    2 1/16

    4 1/32

    2 3/4

    1.689

    1 3/16

    5.15

    Notes:
    ● Class 6000 to be used with schedule 160 pipe.
    ● Dimensions and tolerances in accordance with ASME B16.11 and MSS SP-97
    ● Flat Sockolets are used on welding caps, elliptical heads and flat surfaces.
    ● Outlet combinations fit a number of run pipe sizes, and fittings are marked accordingly

    Nominal Size of Elbow (NPS)

    Outlet Size (NPS)

    CL 3000 Threaded and Socket Weld
    Sch. Standard and XS Buttweld

    CL 6000 Threaded and Socket Weld
    Sch. 160 and XXS Buttweld

    C

    E

    C

    E
    36 – 3/4

    1/4

    1 1/2

    1 19/32

    1 1/2

    1 19/32
    36 – 3/4

    3/8

    1 1/2

    1 19/32

    1 1/2

    1 19/32
    36 – 3/4

    1/2

    1 1/2

    1 19/32

    1 23/32

    1 7/8
    36 – 1

    3/4

    1 23/32

    1 7/8

    2 1/4

    2 1/4
    36 – 2

    1

    2 1/4

    2 1/4

    2 7/8

    2 1/2
    36 – 2

    1 1/4

    2 7/8

    2 1/2

    3 1/8

    2 11/16
    36 – 2

    1 1/2

    3 1/8

    2 11/16

    4 3/16

    3 1/4
    36 – 3

    2

    4 3/16

    3 1/4

    –

    –
    Order
    to
    Specific
    Elbow
    Sizes

    *2 1/2

    4 3/16

    3 1/4

    bw only

    bw only

    *3

    5 1/16

    3 7/8

    bw only

    bw only

    *4

    6 5/8

    4 13/16

    bw only

    bw only

    *6

    9 3/8

    6 1/2

    bw only

    bw only

    *8

    13 5/16

    8 1/16

    bw only

    bw only

    *10

    17 1/32

    10 3/8

    bw only

    bw only

    *12

    19 5/8

    11 1/8

    bw only

    bw only

    Notes:
    ● Class 3000 to be used for schedule 80 pipes
    ● Class 6000 to be used for schedule 160 pipes
    ● Dimensions and tolerances acc. to ASME B16.9, ASME B16.25 and, MSS SP-97.
    ● Dimensions and tolerances in accordance with ANSI/ASME B16.11
    ● Threaded ends in accordance with ANSI/ASME B1.20.1

    There are various Pipe Fittings Manufacturing Process that used to manufactured Elbow, Tee, Reducers and other pipe fittings.

    Fittings are manufactured from Seamless Pipe and from Welded Pipe with filler material (ERW & EFW pipes cannot be used to manufactured fittings). large diameter fittings are manufactured from Plate.

    To manufactured wrought fitting various methods are used, these are the different type of Hot and cold forming process.

    These methods are:
    Hot forming or Extrusion Method
    Hydraulic Bulge method – Cold forming
    UO or Single weld seam Method
    Monaka or Double weld seam Method
    Deep Drawing Method for caps
    Flare Method for Stub ends

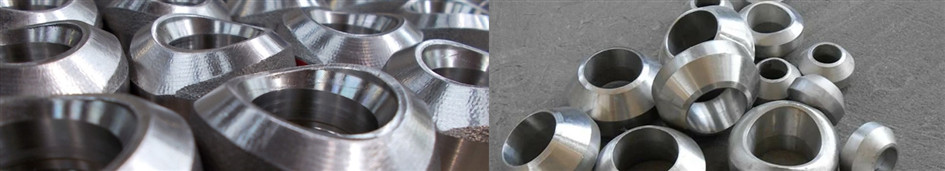

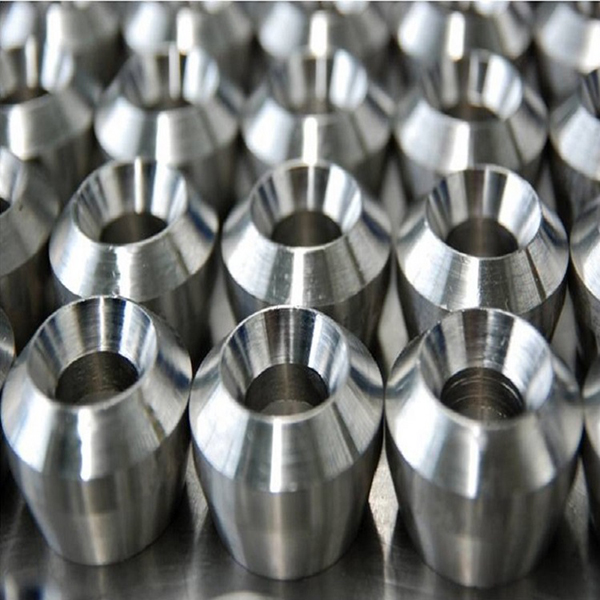

    OLets Pipe Fitting display
