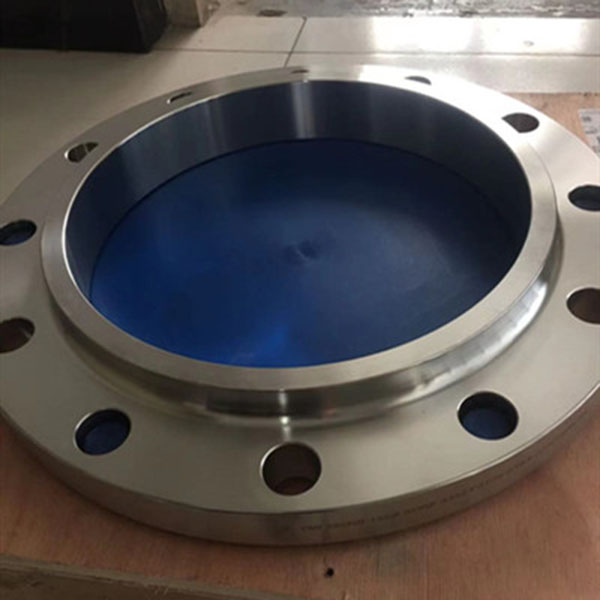

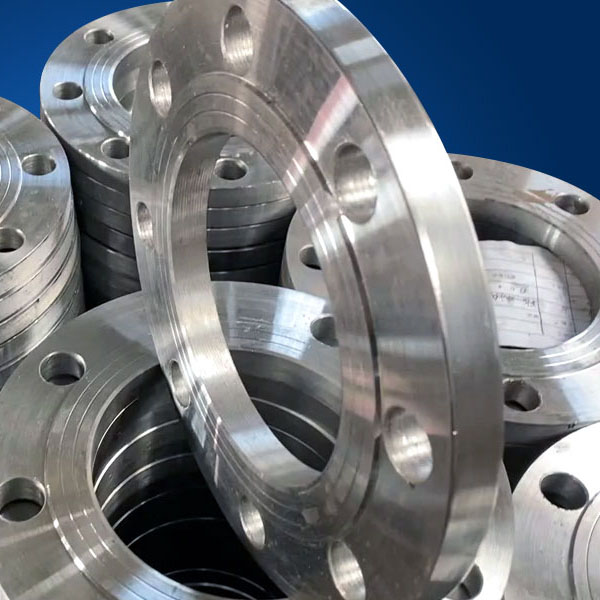

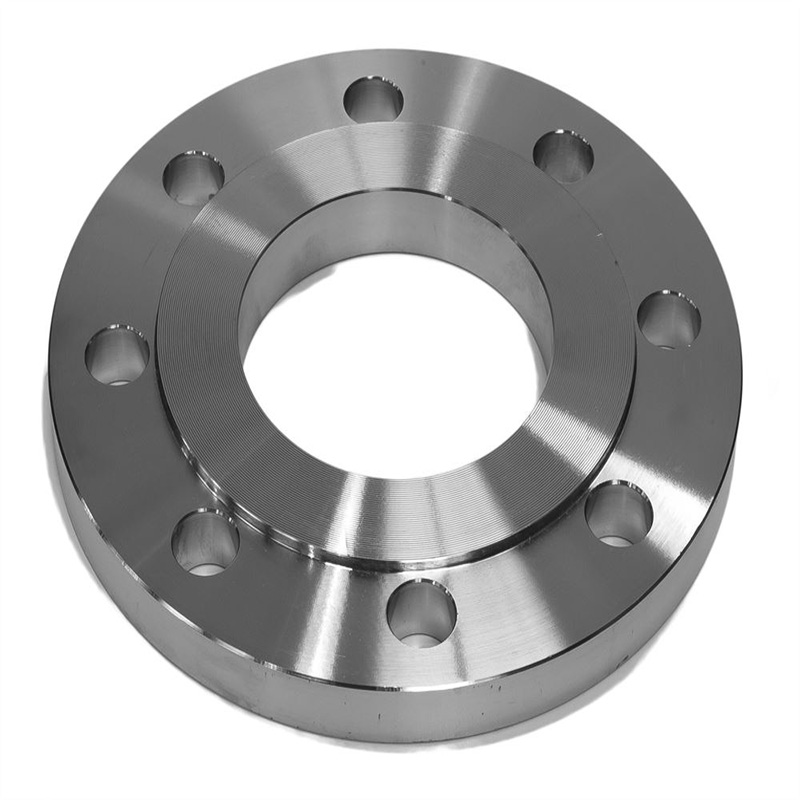

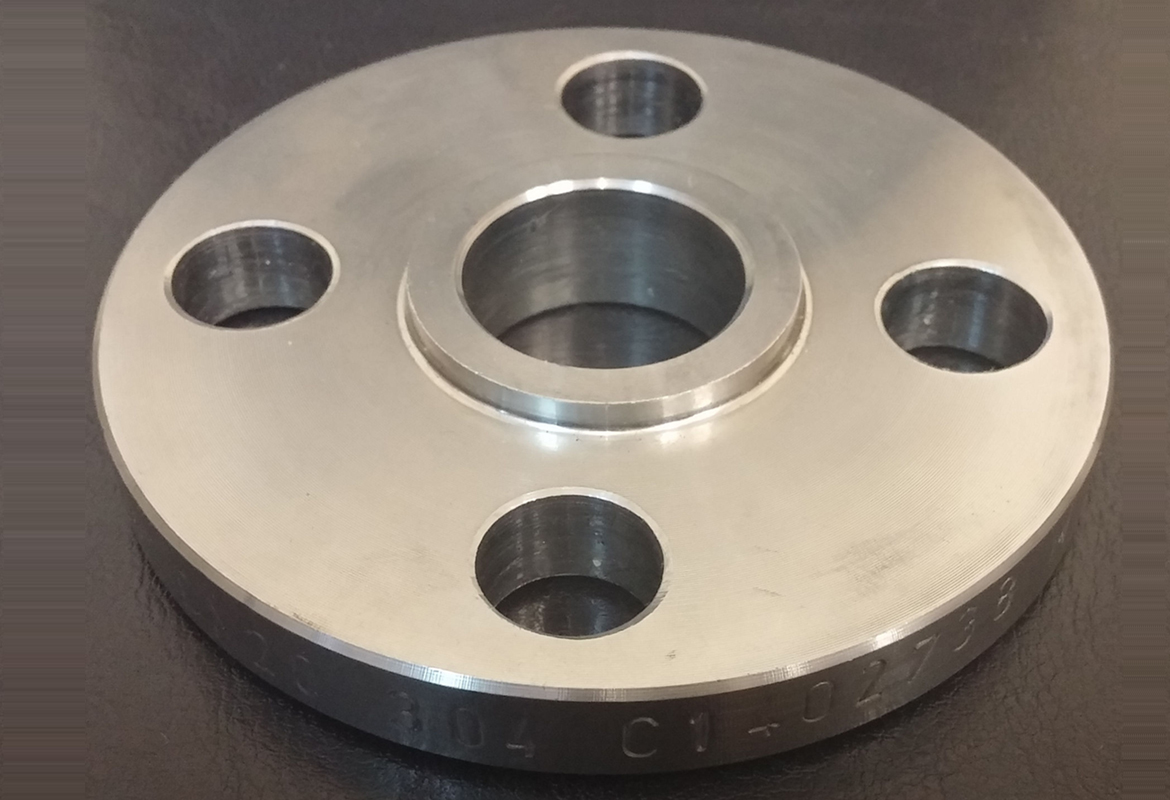

Slip On Flange
Slip-on flange is a general flange type for ASME and DIN flanges. Different from welding-neck flange, slip on flange is without neck and need the pipe insert into the hole to welding.
The calculated strength from a Slip On flange under internal pressure is of the order of two-thirds that of Welding Neck flanges, and their life under fatigue is about one-third that of the latter.The connection with the pipe is done with 2 fillet welds, as well at the outside as also at the inside of the flange.
Details of Slip On flange
1.Slip On flange 2.Filled weld outside 3.Filled weld inside 4.Pipe
Commonly Slip on flange is for low - middle pressure piping system, it is popular due to the low installation and repaire cost.We provides stainless steel slip on flange with high quality and fast delivery.
| Product: | Slip On Flange |
| Dimension Range: | 1/2” to 48” (1200NB) |
| Rates/SCH: | 150#—2500#,API2000PSI-20000PSI |
| Materials: | ASTM A182 F304, F304L, F304/304L, F316, F316L, F316/FP316L, F317L, F321, F321H, F347, F347H, F51(Duplex Steel), N08904etc. |
| Standards: | ANSI B16.15, ANSI B16.47, MSS SP-44, API6A, API 17D, Manufacturer Standard etc. |
| Our Strength |
|
Notes:
①The material above is for your reference only. The actual inquiry will consider order quantity and delivery time.
②If didn’t find your material here, you are kindly requested to make a specific enquiry to: info@hunantube.com.
● Offshore
● Chemical Engineering
● Onshore Oil&Gas
● Paper Plants
● Fertilizer
● Environment Engineering
● Power Project
● Mining
● Shipyard
● Mechanical Manufacture
● Food & Pharmac
