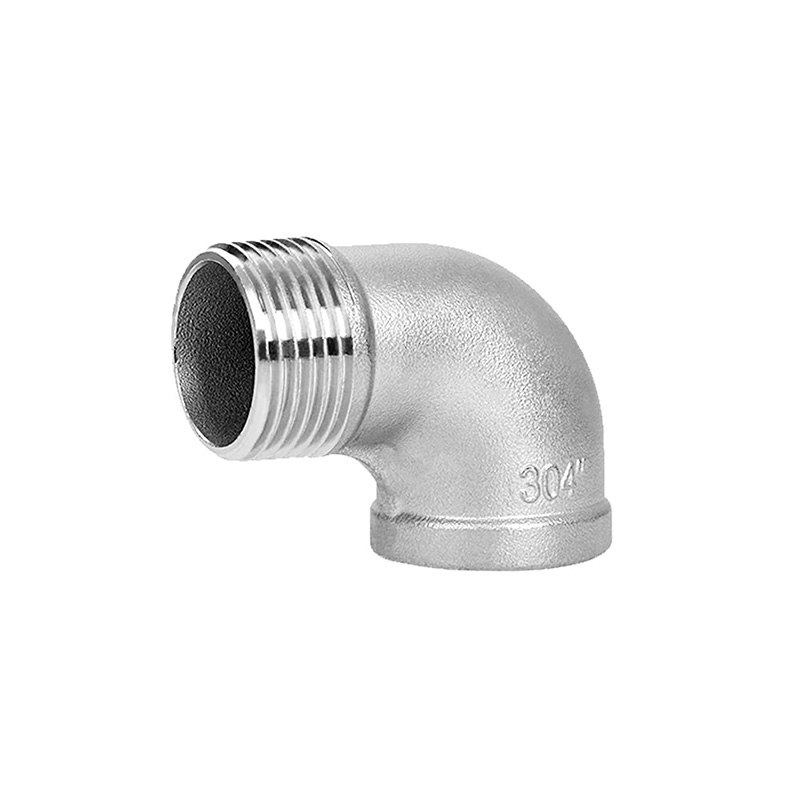

Stainless Steel Elbow

Short Description:

Product:Long Radius Elbow, Short Radius Elbow, LR Elbow, SR Elbow
Size:
Seamless Elbow: 1/2″-24″ DN15-DN600.
Welded Elbow: 4″-72″,DN150-DN1800.
Wall Thickness: Sch.5S to Sch.XXS
Bending Radius: R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom Pipe Fittings
Material: Stainless Steel ASTM, A403, WP304 / 304L / 304H / 316 / 316L / 317 / 317L / 321 / 310 / 347 / 904L
Packaging: Seaworthy Package plywood case or pallet


Product Description

Specification

Manufacturing Technique

Product Display & Application

Product Tags

In stainless-steel piping system, stainless steel elbow is used to change the flow direction in the pipe. According to its angle, the most commonly-used ones are 45°, 90° and 180°. And in some engineering projects, 60° elbow or other unconventional angle elbow are also required.

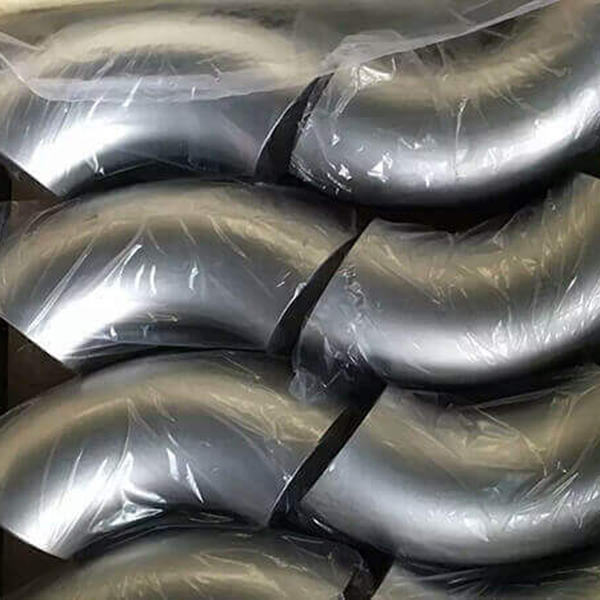

Packing Requirements of Elbow

For those elbows or pipe fittings without special packing requirement, if their size is 2” or below, we usually seal with plastic and then put them into plywood case. However, for the elbows of large size, we normally pack with pallets and give a protection for the beveled end. As for the pallets number, it will depend on the actual size of elbow. Undoubtedly, we will also mark the details in the packing, not limited to the size, materials, trademark, etc. We can also do color labeling for products according to customer requirements, so that they can rapidly distinguish the materials when the products arrive.


  • Previous:
  • Next:

  • Seamless Elbow: 1/2″-24″ DN15-DN600.
    Welded Elbow: 4″-72″, DN150-DN1800.
    Wall Thickness: sch10, sch20, sch30, std, sch40, sch60, xs, sch80, sch100, sch120, sch140, sch160, xxs, std, sch5s, sch20s, sch40s, sch80s.
    Maximum thickness: 120mm.

    Product Range
    Outside diameter 1/2″-72″ DN150-DN1800.
    Wall thickness 2mm – 120mm.
    Bending radius R=1D – 10D.
    Product angle 0 – 180.

    What Material We Do

    Material Grade
    Stainless Steel AISI 304, 304L, 316, 316L, 316Ti, 317L, 321, 321H, 347, 347H, 904L, 254 SMO (W1.4301, 1.4306, 1.4948, 1.4401, 1.4404, 1.4571, 1.4438, 1.4541, 1.4878, 1.4550, 1.4845, 1.4539, 1.4547 etc.).

    Available Standard of Stainless Steel Elbow
    ● ASME B16.9, MSS SP-43
    ● EN 10253-4, EN 10253-3
    ● ISO 05251
    ● GOST 1717375
    ● JIS B2311/2312/2313


    Seamless Elbow Manufacturing Process (Heat Bending & Cold Bending)
    One of the most common methods for manufacturing elbows is using hot mandrel bending from straight steel pipes. After heating the steel pipe at a elevated temperature, the pipe is pushed, expanded, bend by the inner tools of mandrel step by step. Applying hot mandrel bending can manufacture a wide size range seamless elbow. The characteristics of mandrel bending are strongly depend on the integral shape and dimensions of the mandrel. The using advantages of hot bending elbows include smaller thickness deviation and stronger bending radius than other bending method type. Meanwhile, using bending instead of prefabricated bends substantially reduces the number of welds needed. This reduces the amount of work required and increases the quality and usability of pipes. However, cold bending is the process to bent the straight steel pipe at normal temperatures in a bending machine. Cold bending is suitable for pipes with an outer diameter of 17.0 to 219.1 mm, and wall thickness 2.0 to 28.0 mm. The recommended bending radius is 2.5 x Do. Normally at a bending radius of 40D. By using cold bending, we can get small radius elbows, but we need to pack the internals with sand to prevent wrinkling. Cold bending is a quick and inexpensive bending method. It is a competitive option for making pipelines and machine parts.

    Welded Elbow Manufacturing Process (Small & Large)
    Welded elbows are made from the steel plates, so it is not seamless steel elbows. Use a mould and press the steel plate to the shape of the elbow, then weld the seam to be a finish steel elbow. It is the old production method of the elbows.  Recent years the small sizes elbows are almost manufactured from the steel pipes now. For the big size elbows, for example, it is very difficult to produce elbows over 36” OD from the steel pipes . So it is commonly made from the steel plates,  pressing the plate to the shape of half elbow, and welding the two halves together.  Since the elbows are welded in its body , the inspection of the welding joint is necessary . Commonly we use the X-Ray inspection as the NDT.

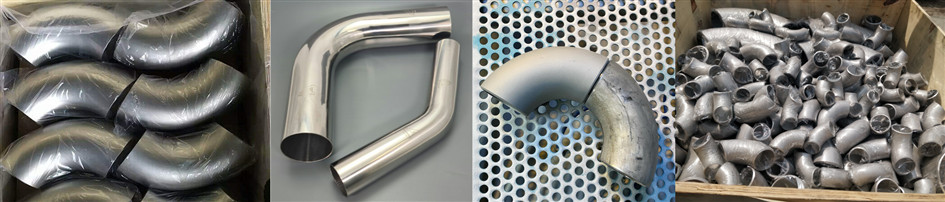

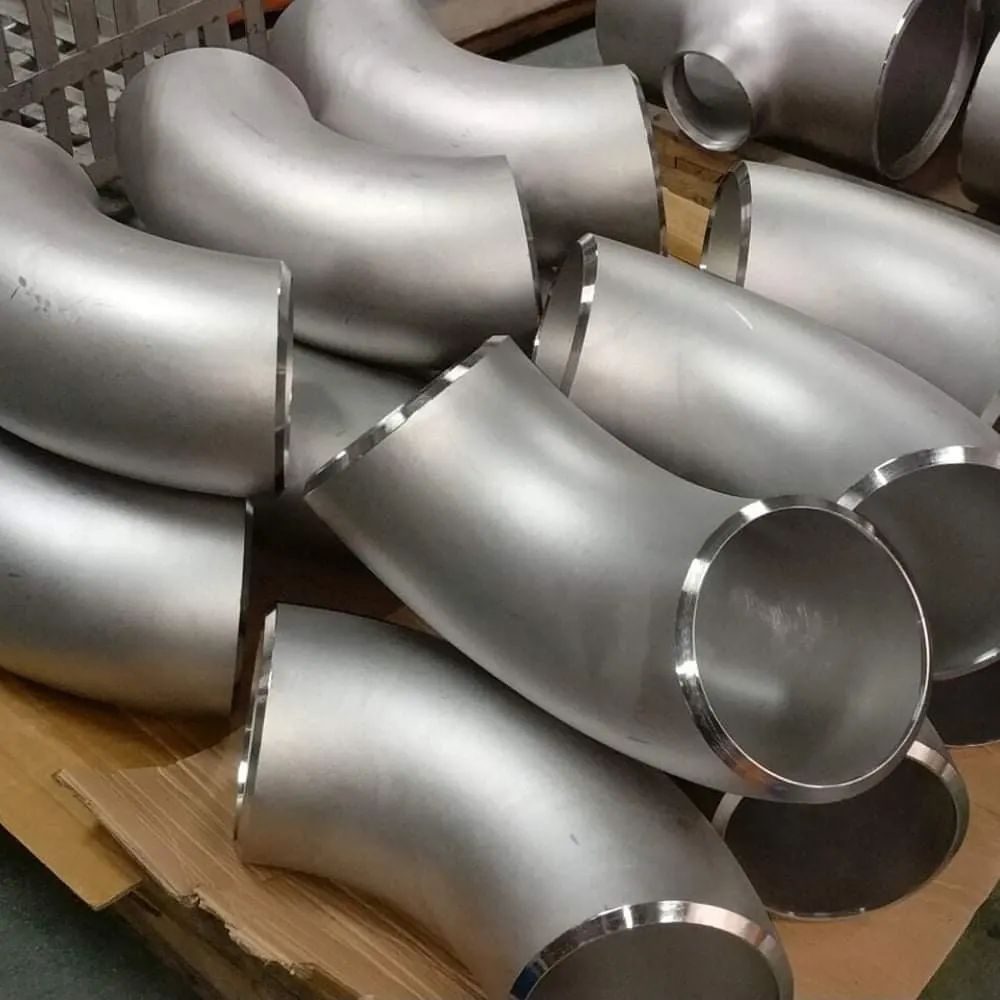

    Stainless Steel Elbow display

    For conveying gas, water and oil either in the oil or natural gas industries
