Stainless Steel Reducer

Short Description:

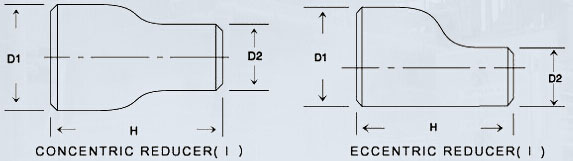

Product: Concentric Reducer (CON. RED.), Eccentric Reducer ( ECC. RED.)
Dimension:
Seamless: 1/2” to 24” (DN15 ~DN600)
Welded: 18” to 80” (DN450~DN2000)
Wall Thickness: SCH5S to SCHXXS
Material: Stainless Steel A403
304/L,304H ·310S ·316/L,316Ti·317/L·321/H ·347/H ·S31803·S32750 ·904L


Product Description

Specification

Manufacturing Technique

Product Display & Application

Product Tags

A steel pipe reducer is a component used in the pipelines to reduce its size from large to small bore in accordance to the inner diameter. The length of the reduction here is equal to an average of the smaller and larger pipe diameters. Here, the reducer can be used as  a nozzle. The reducer helps in meeting the existing piping of varied sizes or hydraulic flow of the piping systems.

Stainless steel reducer is a cold formed reducing pipe, includes concentric reducer and eccentric reducer. As a buttweld fittings, stainless steel reducer is one end big diameter and another is small, it is easy for installation and maintenance.


Hunan Great helps you find exactly the type of stainless steel pipe fittings. A variety of connections include threaded, socket weld, butt weld, and other connection types. We will provide one-stop service for you.


  • Previous:
  • Next:

  • What Material We Do

    Material Grade
    Stainless Steel AISI 304, 304L, 316, 316L, 316Ti, 317L, 321, 321H, 347, 347H, 904L, 254 SMO (W1.4301, 1.4306, 1.4948, 1.4401, 1.4404, 1.4571, 1.4438, 1.4541, 1.4878, 1.4550, 1.4845, 1.4539, 1.4547 etc.).

    Stainless Steel Pipe Fittings -Butt-weld Fittings Dimension – ANSI/ASME B16.9

    Product Size* Wall Thickness** Seamless Welded
    Elbow

    1/2″-24″

    SCH10S~XXS

    8″-104″

    SCH5S~80S/XS

    Tee

    1/2″-24″

    SCH10S~XXS

    8″-104″

    SCH5S~80S/XS

    Reducer

    1/2″-24″

    SCH10S~XXS

    8″-104″

    SCH5S~80S/XS

    Cap

    1/2″-80″

    SCH10S~SCH160

    Lap Joint Stub End

    1/2″-24″

    SCH5S~80S/XS

    8″-80″

    SCH5S~80S/XS

    Notes:
    *Dimension range is not available for duplex and some special grade (For example, super duplex S32750 ≤16”). Please make a specific enquiry.
    ** Wall thickness range is not available for duplex and some special grade, please make a specific enquiry.

    Available Standard for Stainless Steel Pipe Fittings
    The Common Manufacturing Standard for Stainless Steel Pipe Fittings

    Norm

    Specification

      Stainless Steel Butt-weld Fittings
    ASME B16.9 Factory-Made Wrought Buttwelding Fittings
    MSS-SP-75 High-Strength, Wrought, Butt-Welding Fittings
    MSS-SP-43 Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications
    EN 10253-4 Wrought austenitic and austenitic-ferritic (duplex) stainless steels with specific inspection requirements
    EN 10253-3 Wrought austenitic and austenitic-ferritic (duplex) stainless steels without specific inspection
    ISO 05251 Butt-welding pipe fittings. Wrought austenitic and austenitic-ferritic (duplex) stainless steels without specific inspection requirements
    GOST 17375 Carbon and low-alloy steel butt-welding fittings Elbow Design
    GOST 17376 Carbon and low-alloy steel butt-welding fittings Tees Design
    GOST 17378 Carbon and low-alloy steel butt-welding fittings Reducers Design
    GOST 17379 Carbon and low-alloy steel butt-welding fittings. Elliptical caps. Design
    GOST 17380 Carbon and low-alloy steel butt-welding fittings. Specifications
    GB12459 Steel Wrought Buttwelding Fittings
    JIS B2311 Steel Butt-Welding Pipe Fittings for Ordinary Use
    JIS B2312 Steel Plate Butt-Welding Pipe Fittings
    JIS B2313 Steel Plate Butt-Welding Pipe Fittings
      Stainless Steel Forged Fittings
    ASME B16.11 Forged Fittings, Socket-Welding and Threaded
    MSS SP-79 Socket-Welding Reducer Inserts
    MSS SP-83 Class 3000 and 6000 Pipe Unions, Socket Welding and Threaded (Carbon Steel, Alloy Steel, Stainless Steels, and Nickel Alloys).
    MSS SP-97 Integrally Reinforced Forged BranchOutlet Fittings – SocketWelding, Threaded, and Buttwelding Ends
    BS 3799 Specification for Steel Pipe Fittings, Screwed and Socket-Welding for the petroleum industry
    JIS B2302 Carbon Steel & Stainless Steel Socket Product of Standards
    JIS B2316 Steel socket-welding pipe fittings

    *The specification is for reference only.




    Our reducers have high strength and corrosion resistance for use in various industries. And we stock both finished and semi-finished goods for urgent requirements of the customers.

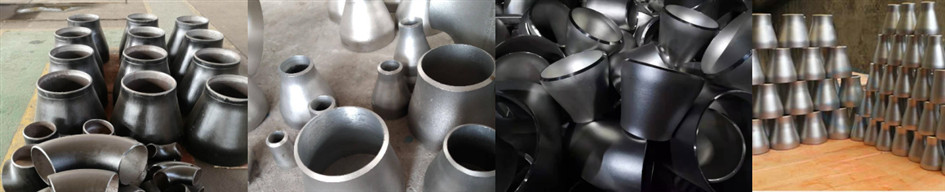

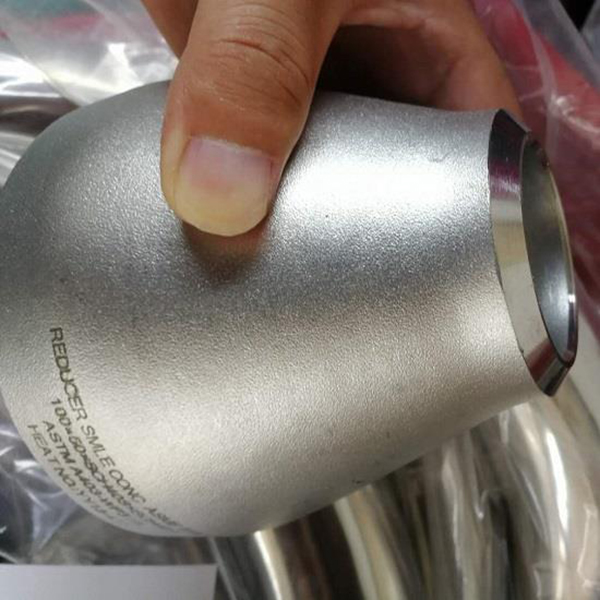

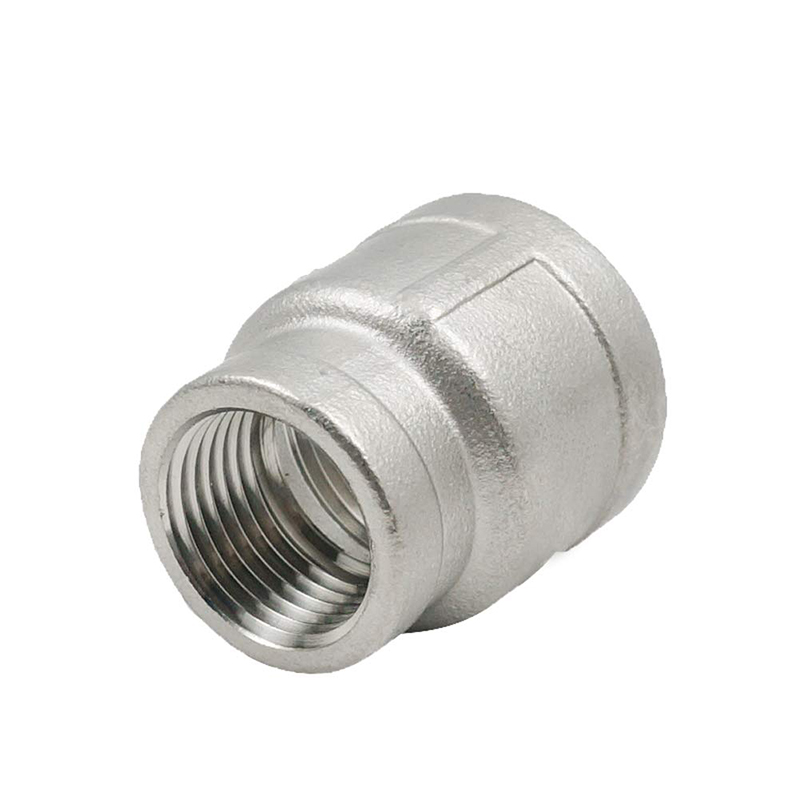

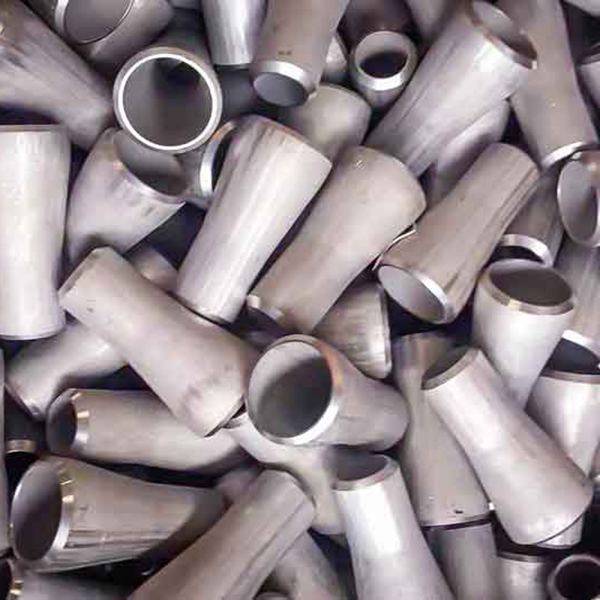

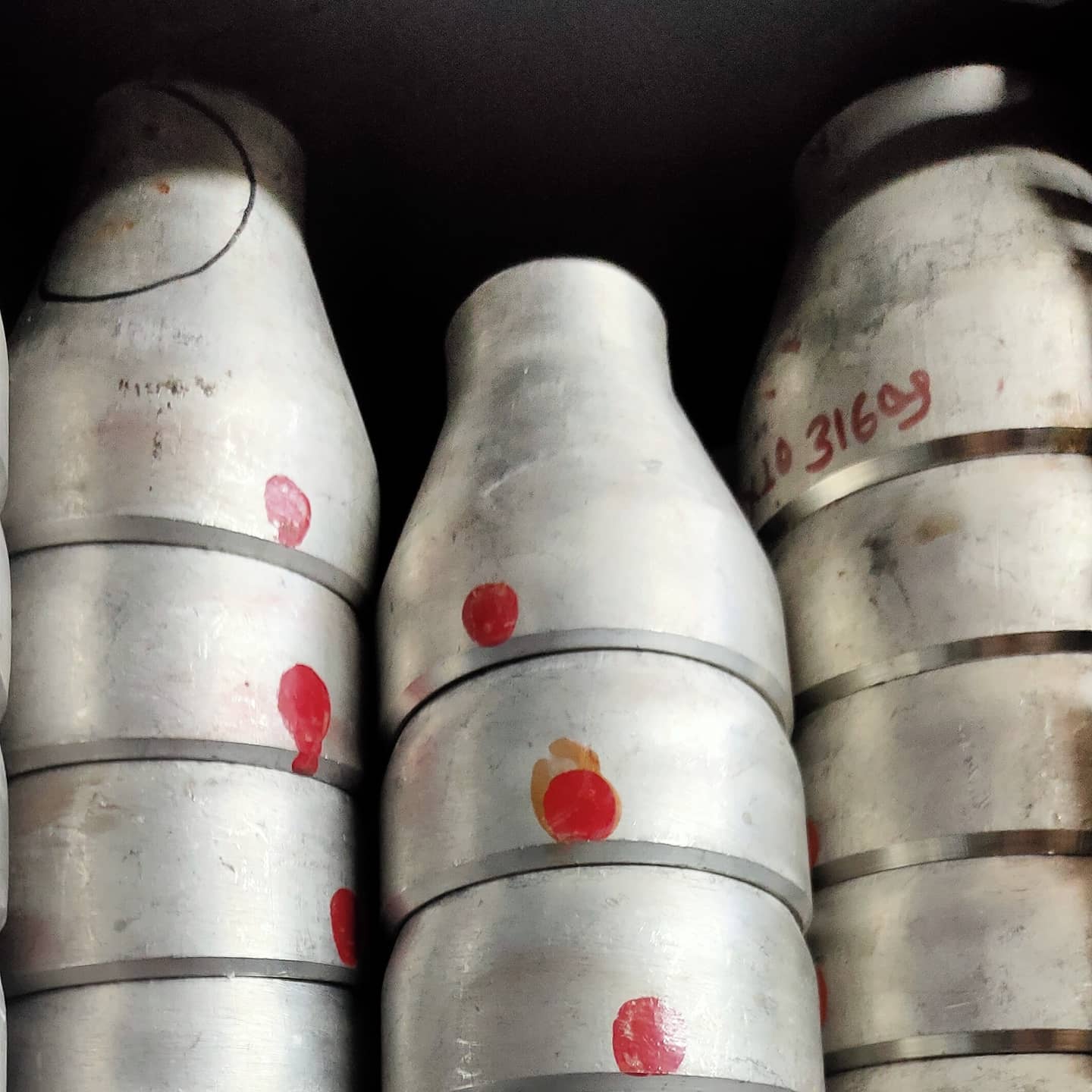

    Stainless Steel Reducer display

    Usage: For conveying gas, water and oil either in the oil or natural gas industries
