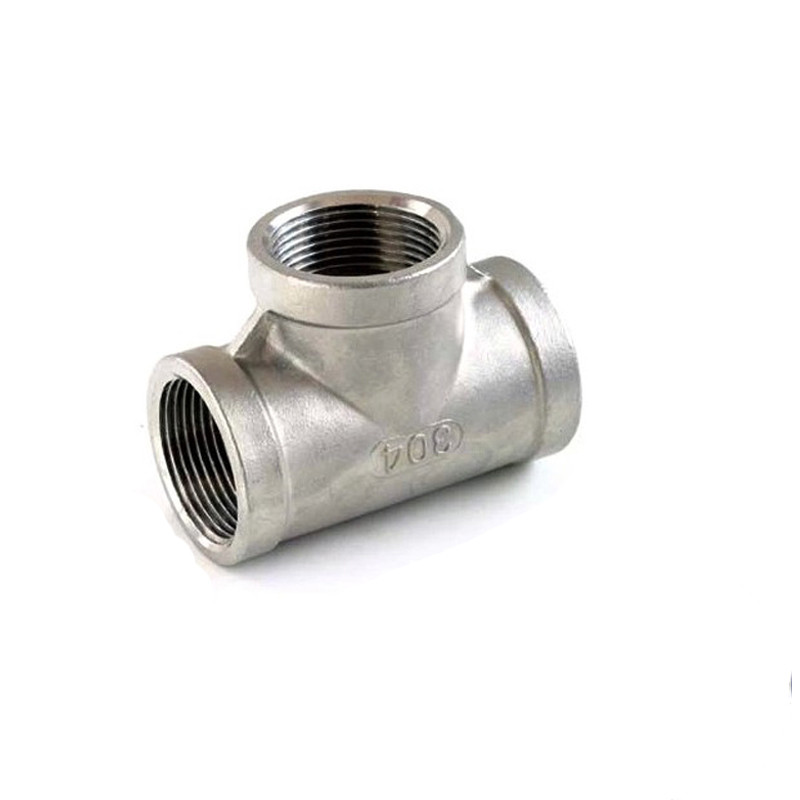

Stainless Steel Tee
A tee is also called triplet,three way and “T” pieces and it can be used to either combine or split a fluid flow. Most common are tees with the same inlet and outlet sizes, but ‘reducing’ tees are available as well. it means the one or two ends are differ in dimension.due to this dimension differ,the makes the tee fittings with the capacity to control the volume when requried.
Steel pipe tee has three branches that can change fluid direction. It has T-shaped or Y-shaped, and include Equal Tee and Reducing Tee (Reducer Tee). Steel tee is widely used in pipe networks for convey liquids and gases.
A tee is the most common pipe fitting. It is available with all female thread sockets, all solvent weld sockets, or with opposed solvent weld sockets and a side outlet with female threads.When the size of the branch is same as header pipes, equal tee is used and when the branch size is less than that of header size, reduced tee will be used.
Types of Steel Pipe Tee:
According to branch diameters and functions there are:
Equal Tee
Reducing Tee (Reducer Tee).
According to connection types are:
Butt Weld Tee
Socket Weld Tee
Threaded Tee.
Pattern | Weld | Seamless |
Nominal size | 1/2”-48”(DN15-DN1200) | 1/2”-20”(DN15-DN500) |
Wall thickness | 2~100mm | 2~50mm |
Bend radius | SCH5S-SCH160 ,XXS | SCH5-SCH160 |
What Material We Do
Material | Grade |
Stainless Steel | AISI 304, 304L, 316, 316L, 316Ti, 317L, 321, 321H, 347, 347H, 904L, 254 SMO (W1.4301, 1.4306, 1.4948, 1.4401, 1.4404, 1.4571, 1.4438, 1.4541, 1.4878, 1.4550, 1.4845, 1.4539, 1.4547 etc.). |
Stainless Steel Pipe Fittings -Butt-weld Fittings Dimension – ANSI/ASME B16.9
Product | Size* | Wall Thickness** | Seamless | Welded |
Elbow |
1/2″-24″ |
SCH10S~XXS |
√ |
√ |
8″-104″ |
SCH5S~80S/XS |
√ |
||
Tee |
1/2″-24″ |
SCH10S~XXS |
√ |
√ |
8″-104″ |
SCH5S~80S/XS |
√ |
||
Reducer |
1/2″-24″ |
SCH10S~XXS |
√ |
√ |
8″-104″ |
SCH5S~80S/XS |
√ |
||
Cap |
1/2″-80″ |
SCH10S~SCH160 |
√ |
|
Lap Joint Stub End |
1/2″-24″ |
SCH5S~80S/XS |
√ |
√ |
8″-80″ |
SCH5S~80S/XS |
√ |
Notes: *Dimension range is not available for duplex and some special grade (For example, super duplex S32750 ≤16”). Please make a specific enquiry. ** Wall thickness range is not available for duplex and some special grade, please make a specific enquiry.
Available Standard for Stainless Steel Pipe Fittings The Common Manufacturing Standard for Stainless Steel Pipe Fittings
Norm |
Specification |
Stainless Steel Butt-weld Fittings | |
ASME B16.9 | Factory-Made Wrought Buttwelding Fittings |
MSS-SP-75 | High-Strength, Wrought, Butt-Welding Fittings |
MSS-SP-43 | Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications |
EN 10253-4 | Wrought austenitic and austenitic-ferritic (duplex) stainless steels with specific inspection requirements |
EN 10253-3 | Wrought austenitic and austenitic-ferritic (duplex) stainless steels without specific inspection |
ISO 05251 | Butt-welding pipe fittings. Wrought austenitic and austenitic-ferritic (duplex) stainless steels without specific inspection requirements |
GOST 17375 | Carbon and low-alloy steel butt-welding fittings Elbow Design |
GOST 17376 | Carbon and low-alloy steel butt-welding fittings Tees Design |
GOST 17378 | Carbon and low-alloy steel butt-welding fittings Reducers Design |
GOST 17379 | Carbon and low-alloy steel butt-welding fittings. Elliptical caps. Design |
GOST 17380 | Carbon and low-alloy steel butt-welding fittings. Specifications |
GB12459 | Steel Wrought Buttwelding Fittings |
JIS B2311 | Steel Butt-Welding Pipe Fittings for Ordinary Use |
JIS B2312 | Steel Plate Butt-Welding Pipe Fittings |
JIS B2313 | Steel Plate Butt-Welding Pipe Fittings |
Stainless Steel Forged Fittings | |
ASME B16.11 | Forged Fittings, Socket-Welding and Threaded |
MSS SP-79 | Socket-Welding Reducer Inserts |
MSS SP-83 | Class 3000 and 6000 Pipe Unions, Socket Welding and Threaded (Carbon Steel, Alloy Steel, Stainless Steels, and Nickel Alloys). |
MSS SP-97 | Integrally Reinforced Forged BranchOutlet Fittings – SocketWelding, Threaded, and Buttwelding Ends |
BS 3799 | Specification for Steel Pipe Fittings, Screwed and Socket-Welding for the petroleum industry |
JIS B2302 | Carbon Steel & Stainless Steel Socket Product of Standards |
JIS B2316 | Steel socket-welding pipe fittings |
*The specification is for reference only.
Usage: Stainless steel tee is widely used in chemical, health, food and other industries. Its advantages are applicable to different working environments and have good corrosion resistance.
