China's most trusted manufacturers of Stainless Steel Pipes & Tubes.

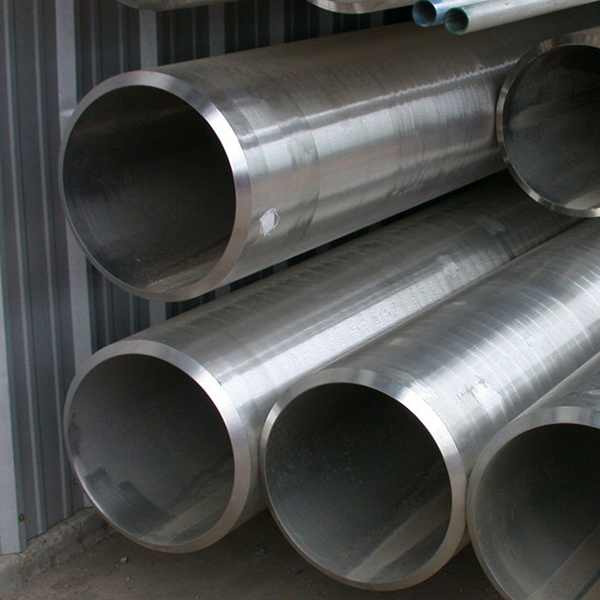

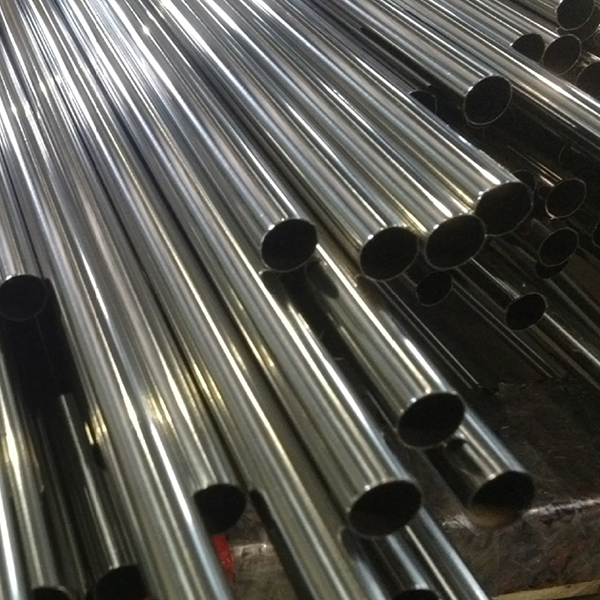

Stainless Steel Welded Pipe

Short Description:

Tube Range: 1/2″ OD – 24″ OD, Guage: 25 SWG – 10 SWG
Schedules: 5, 10S, 10, 30, 40S, 40, 80, 80S, XS, 160, XXH
Length: Custom Cut Lengths
Material Grade:
304/304L/316/316L/321/321H/310/310s/317L/310H//904L
Standards: AISI ASTM JIS SUS and GB
Certifications: ISO 9001,SGS,BV
Surface: BA, 2B, NO.1, NO.4, 4K, HL, 8K
Types: Round, Square, Rectangle, Coil, “U” Shape, Hydraulic & Honed Tubes


Product Description

Specification

Manufacturing Technique

Product Display & Application

Product Tags

Stainless steel welded pipe can be used in virtually every industry thanks to its flexibility. However, they fare better in corrosion resistance as opposed to withstanding pressure. Because of the materials used and the lightweight nature of welded pipes, they’re far more cost-effective than most other piping methods and offer the best value for your money.

Our staff are qualified and certified according to all current welding procedures, thus guaranteeing our customers longitudinally welded stainless steel pipes in line with the requirements.
● Stainless steel contains chromium which provides the properties of corrosion resistance at high temperatures.
● Stainless steel can withstand corrosive or chemical environments due to its smooth surface.
● Stainless steel products are safe for long-term use with excellent resistance of corrosion fatigue.


  • Previous:
  • Next:

  • Product Name

    Executive Standard

    Dimension

    Steel Code / Steel Grade

    Industrial Pipes

    ASTM A312, A358, A778, JIS G3459

    OD: 1/4″~40″
    WT: SCH5S~SCH80S

    TP304, TP304L, TP316L, SUS304TP

    Tubes for Boiler and Heat-Exchanger, General Service Tubing

    ASTM A249, A269, JIS G3463

    OD: 15.9~139.8mm
    WT: 1.6~5.0mm

    TP304, TP304L, TP316L, SUS304TB

    Mechanical and Structural Tubes

    ASTM A554, JIS G3446

    OD: 7.9~152.4mm
    WT: 0.5~6.5mm

    MT304, MT304L, MT316L, MT430 Grade 201, 202 as per mill’s STD SUS304

    Square Tubes

    ASTM A554

    OD: 12.7×12.7~150x150mm
    WT: 0.7~6.5mm

    MT304, MT304L, MT316L, MT430 Grade 201, 202 as per mill’s STD

    Rectangular Tubes

    ASTM A554

    OD: 10×20~100x200mm
    WT: 0.7~6.5mm

    MT304, MT304L, MT316L, MT430 Grade 201, 202 as per mill’s STD

    Sanitary Tubing

    ASTM A270
    JIS G3447

    OD: 25.4~165.2mm
    WT: 0.8~3.05mm

    TP304, TP304L, TP316L, SUS304TBS

    Large Gauge Pipes for Ordinary Piping

    JIS G3448

    OD: 15.88~318.5mm
    WT: 0.8~3.0mm

    SUS304TPD

    Large Diameter Pipes

    JIS G3468

    OD: 14″~40″
    WT: SCH5S~SCH40S

    SUS304TPY

    Dimension Tolerances of Welded Steel Pipe

    NPS Designator Permissible Variations in Outside Diameter
    Over In. Under In.
    1/8 to 1-1/2, incl. 1/64 (0.015) 1/32 (0.031)
    Over 1-1/2 to 4, incl. 1/32 (0.031) 1/32 (0.031)
    Over 4 to 8, incl. 1/16 (0.062) 1/32 (0.031)
    Over 8 to 18, incl. 3/23 (0.093) 1/32 (0.031)

    Nominal Wall Thickness:

    NPS Designator Outside Diameter in. Schedule 5S in. Schedule 10S in. Schedule 40S in. Schedule 80S in.
    1/4 0.54 0.065 0.088 0.119
    3/8 0.675 0.065 0.091 0.126
    1/2 0.84 0.065 0.083 0.109 0.147
    3/4 1.05 0.065 0.083 0.113 0.154
    1 1.315 0.065 0.109 0.133 0.179
    1 1/4 1.66 0.065 0.109 0.14 0.191
    1 1/2 1.9 0.065 0.109 0.145 0.2
    2 2.375 0.065 0.109 0.154 0.218
    2 1/2 2.875 0.083 0.12 0.203 0.276
    3 3.5 0.083 0.12 0.216 0.3
    3 1/2 4 0.083 0.12 0.226 0.318
    4 4.5 0.083 0.12 0.237 0.337
    5 5.563 0.109 0.134 0.258 0.375
    6 6.625 0.109 0.134 0.28 0.432
    8 8.625 0.109 0.148 0.322 0.5
    10 10.75 0.134 0.165 0.365 0.5
    12 12.75 0.156 0.18 0.375 0.5





    Bar & Structural Cutting Products cut include Round Bar, Flat bar, Hex bar, Square bar, Tubing and Hollow Bar, Pipe, Angles, channels, Beams and Tees.  Thickness range is 1/16″ to 28″diameter
    Production Cutting Stainless can provide production cutting for product diameters up to 4″.
    Pipe Threading Available thru 2″ in Diameter/All schedules
    Tubular Polishing Products polished included all tubular products, with OD & ID polishing available, Round Bar, Square Bar, Hex & Flat bar, Angles, Uneven Leg Angles, beams, and other shapes.



    Welded stainless steel tubes have rust resistance and excellent high temperature resistance.

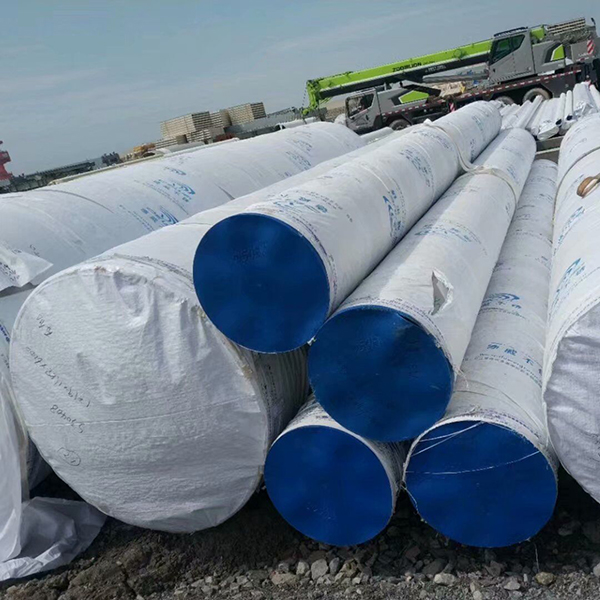

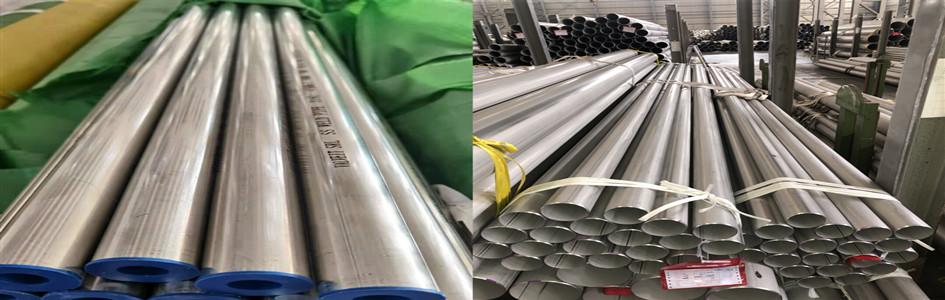

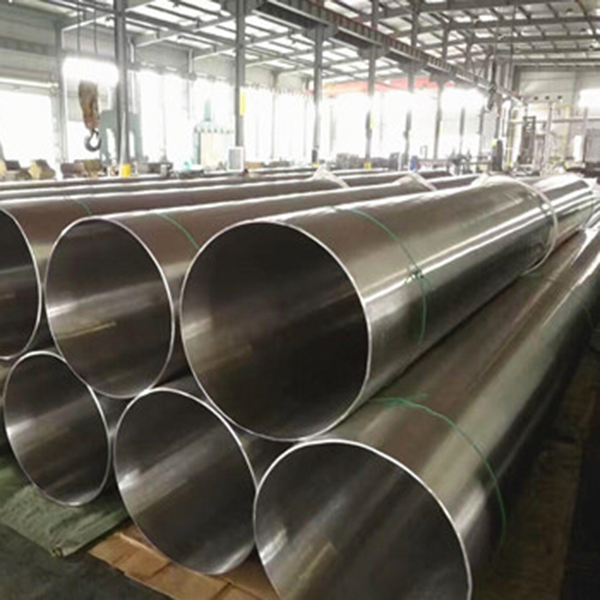

    Stainless Steel Welded Pipes&Tubes-display

    Stainless steel welded pipe is corrosion resistant and this type of material is extremely durable in harsh conditions. This type of pipe is popular in industrial applications in the following industries:
    ● Chemical
    ● Food and beverage
    ● Marine
    ● Mining
    ● Oil and gas
    ● Pharmaceutical
    ● Petrochemical
    ● Power generation
    ● Renewable energy
    Stainless steel welded pipe can be cheaper to manufacture than seamless pipe for your applications that require corrosion resistance.
